Waterproof IP67 digital decoration UCS1903 rgb pixel curtain light led string

FOB Reference Price:Get Latest Price
$0.80 - $1.20 / Pieces | 20 Piece/Pieces (Min. Order)
Model Number:
SJ-3015S-35-1903-12V
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Chip Material:
AlGaInP
Emitting Color:
Tri-Color(Red-Blue-Green)
Luminous Flux(lm):
18-22
Optical Attenuation(%):
1
Power:
0.3
Power Dissipation:
0.3/led
Viewing Angle(°):
160
Color Rendering Index(Ra):
95
Color Temperature:
3000-12000
Operating Temperature(℃):
-40 - 80
Storage Temperature(℃):
-30 - 60
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Shiji Lighting
Certification:
CE, RoHS
Model:
SJ-3015S-35-1903-12V
Lighting source:
SMD 5050 RGB diode
Beam Angle:
160 degree
Voltage:
DC12v
Consumption:
0.6w/pcs
LED QTY:
2PCS
IC chip:
ucs1903/ ws2811
Service life:
>50,000 Hours
IP grade:
IP66
Diameter:
22mm
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month UCS1903 pixel ball string
Packaging & Delivery
Packaging Details
20pcs/strand, 6strands/bag, 10bags/carton
packed in anti-static plastic bag
carton size: 46.5cm*26cm*46cm
Port
Yantian Shenzhen
Product Description
SJ-3015S-35-1903-12V
LED Chip
2 pcs SMD 3535 RGB led
Voltage
DC12V
Consumption
0.3W/led
UCSIC Chip
UCS1903
Diameter
20mm
IP grade
IP67
Wire length
Standard 8mm, customizable
Warranty
2years
Product Features

SJ-3015S-35-1903-12V



Standard 20pcs /strand
wire length 8mm, customizable

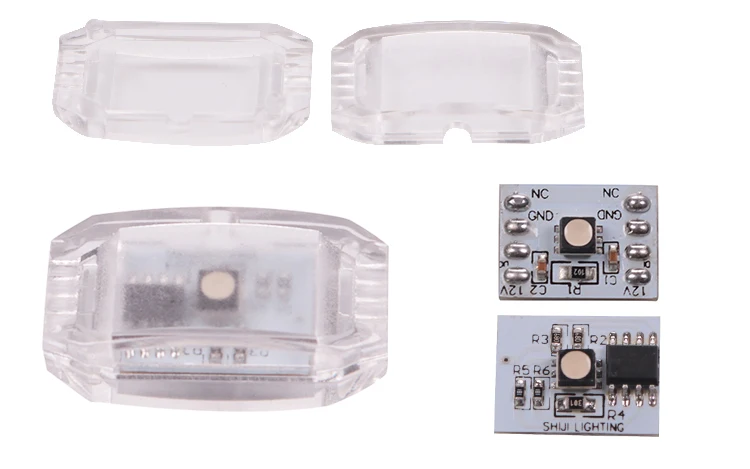

Shell


Cube transparent shell


Silicon glue injection IP67

CHIPS



1pcs SMD 3535 rgb led on each side of the PCB

IC: UCS1903

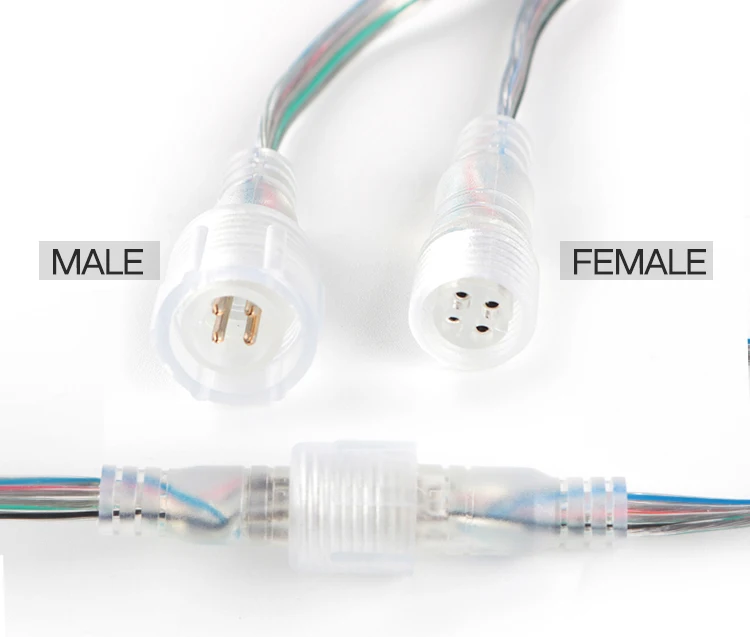

Connector


Waterproof male connector and female connector for each  strand


DAT/ GND/ VCC

Dimensions

Cube shell size:

L- 30mm

W-15mm

H-10mm


Wire length customizable

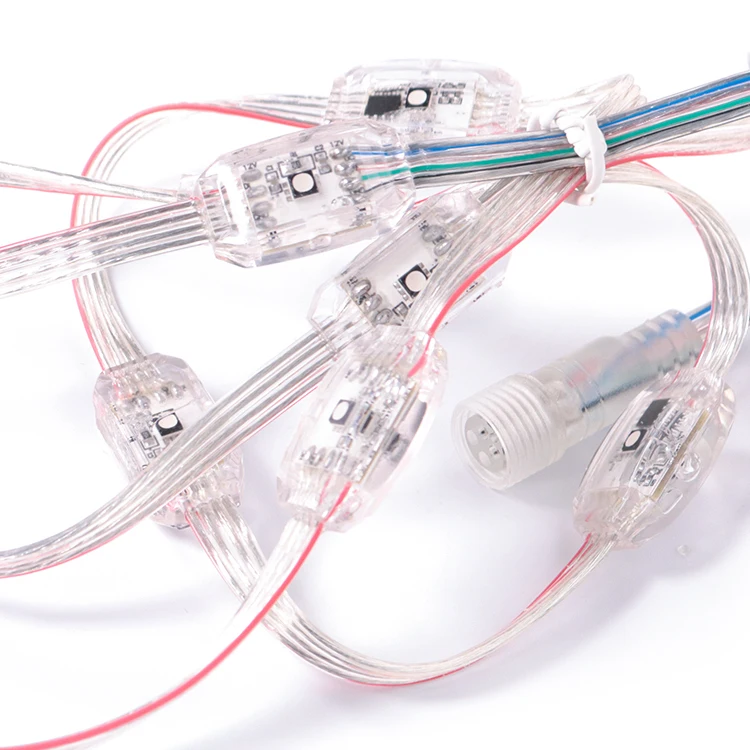

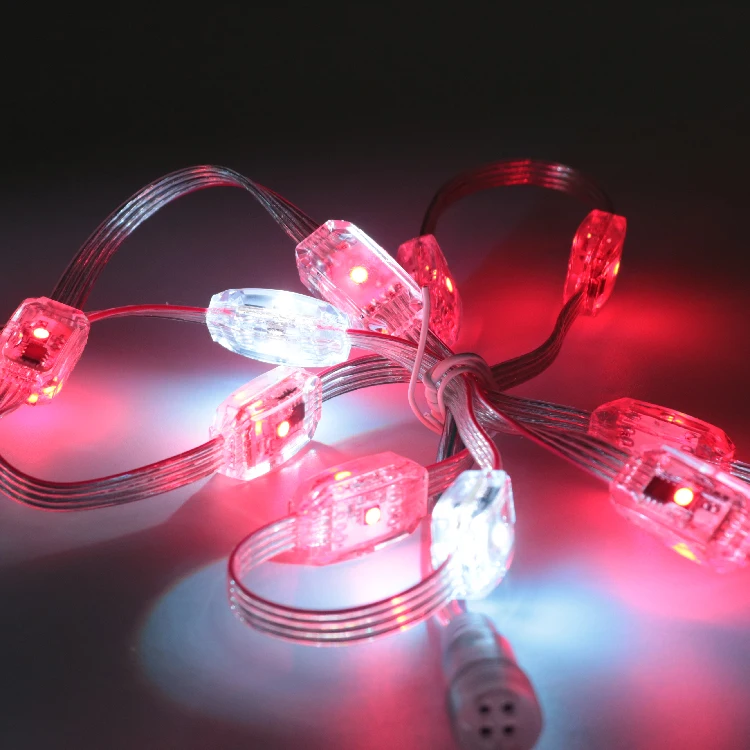

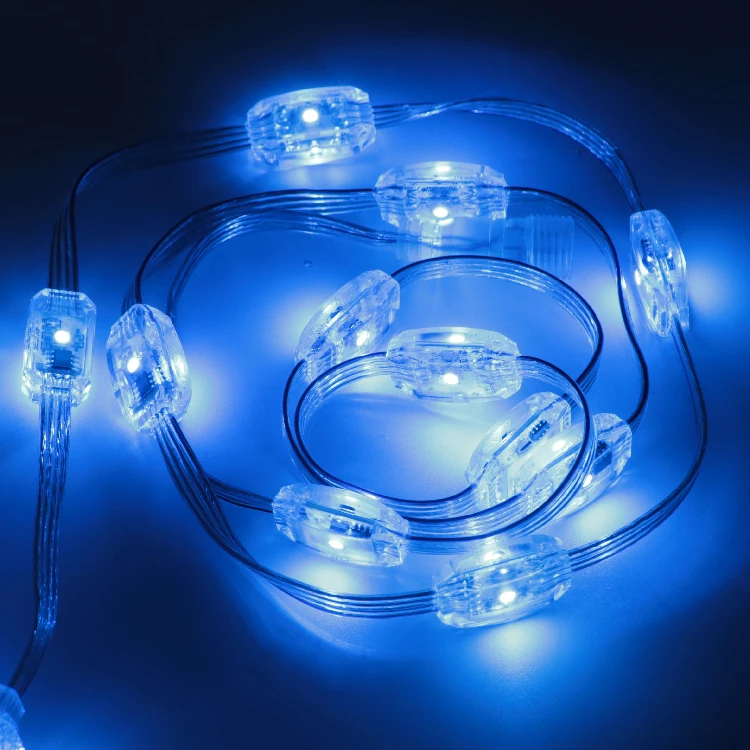

1- This is one new mini 3D string light, the colour is changeable full colour;

2- 2pcs SMD3535 RGB LEDs inside of one light;
3- UCS1903 ic chip, but 4pin signal transfer;
4- Normal length per string is 3m/ 20LEDs per string;

5-Use PU glue sealing, good compressive strength, high protection grade;
6-Cables and case are using anti-cold, anti-UV, flameresistant material , can be used in outdoor for long time;
7-Aplicaiton: Brideges decoration, hotels decoration, KTV bars and theme parks decoration lights for decoration.

Drive System

1. SD Controller T400K, T500K, T4000C, K1000C, K8000C; Online Controller; Artnet;Arduino and DMX controller.
2. Software to make program, now we often use LEDEDIT, LED EASY and MADRIX.
3. Meanwell power supply and chuanglian power supply, waterproof/non-waterproof.
4. Contact me for more information.

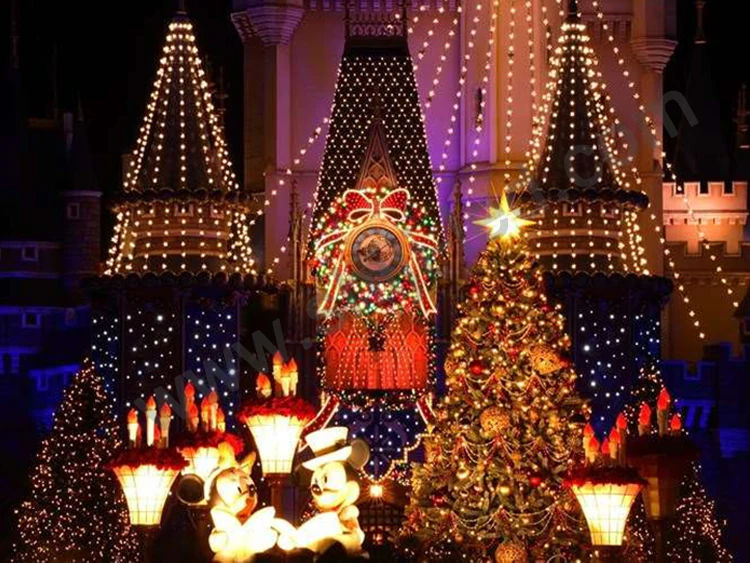

Applications

The excellent light and user-friendly design makes LED perfect for numerous applications.
Christmas holiday lighting decoration / shopping mall / home decoration / wedding decoration / restuatant & hotel / advertisiment lighting / outdoor christmas decorations / amusement park & theater lighting etc...

Related Poducts

SJ-3D-1903

mini led ball, ucs1903 ic , DC12v , 0.3w/led

SJ-10-SK6812

10mm diameter, sk6812 ic , DC5v , 0.3w/led

SK-1818-APA102

18mm square, apa102 ic , DC5v , 0.3w/led

SJ-SDF8-2811

25mm diameter, ws2811 DC12V, 0.3W/led
Company Information

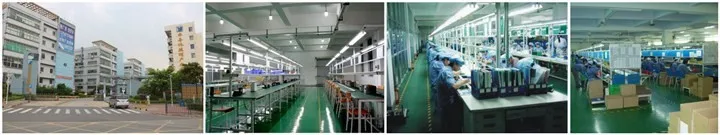

Shenzhen Shiji Lighting Co., Ltd, focus on pixel and DMX led lighting solutions,started from 2010, with many years experience on led lighting, has wild market in America and Europe, main products :
1.LED strip light: mainly SMD5050, SMD2835/3528, mini LED 3535/2427, side emitting 4020.
2.LED pixel bar light.
3.LED tube light.
4.WS2812B/ APA102/ SK6812/ SK9822/ WS2813/ WS2815/
5.LED amusement point light.
6.Do customize products, OEM.

Welcome to visit Shiji .
Address: 5F A2 Huafeng Zhenbao Industrial Park, BeiHuan Rd, Shiyan, Baoan, Shenzhen, China. 518108
Website: www.shiji-led.com

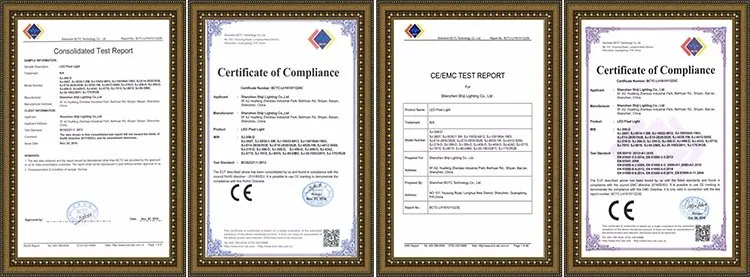

CE & RoHS

Payment & Delivery
FAQ

Why choose SHIJILIGHTING LED Light ?


1.PCB board: SHIJILIGHTING use at least 2 ounces pcb board, some are 3 ounces and 4 ounces for better dissipation. They are 100% pure copper. Most of our PCB board are UL listed from the PCB producer of Hongqi Lighting and Founder Soonest Electronics.

2.LED Chip: Epistar brand led chips. SHIJILIGHTING could do other brand chips according to customer's request, such as, Cree, Samsung, Philips, San'an, Honglitronic and Smalite led chips. We only focus on high quality led chips.

3.Color Rendering Index: SHIJILIGHTING use at least Ra80 led chips to do our led strip lights. When we test by the integrating sphere machine, it usually shows Ra83 for most of our led chips. We also use many Ra90 and Ra95 led chips for special projects. We can offer the test report for each batch of our led strip light.

4.Uniformity: It's very important to our customers that SHIJILIGHTING always keep the same bin color temperature for all our led strip lights.

5.Waterproof Rating: We could not only offer traditional IP65, IP67, IP68 waterproof process, but also new silicon extrusion process for IP65, IP66, IP67, IP68 waterproof ratings in dotless milk encapsulations. Most of our waterproof mold are private mode.

6.Engineer Team: SHIJILIGHTING have our own engineer team. Whatever flexible strip pcb , rigid strip pcb or led pixel module, our engieer team can draw file for customers at first time. We welcome all OEM and ODM orders from all over the world.

7.Service: SHIJILIGHTING led strips are CE, ROHS, We warranty 2-3 years. Welcome to visit our factory !
